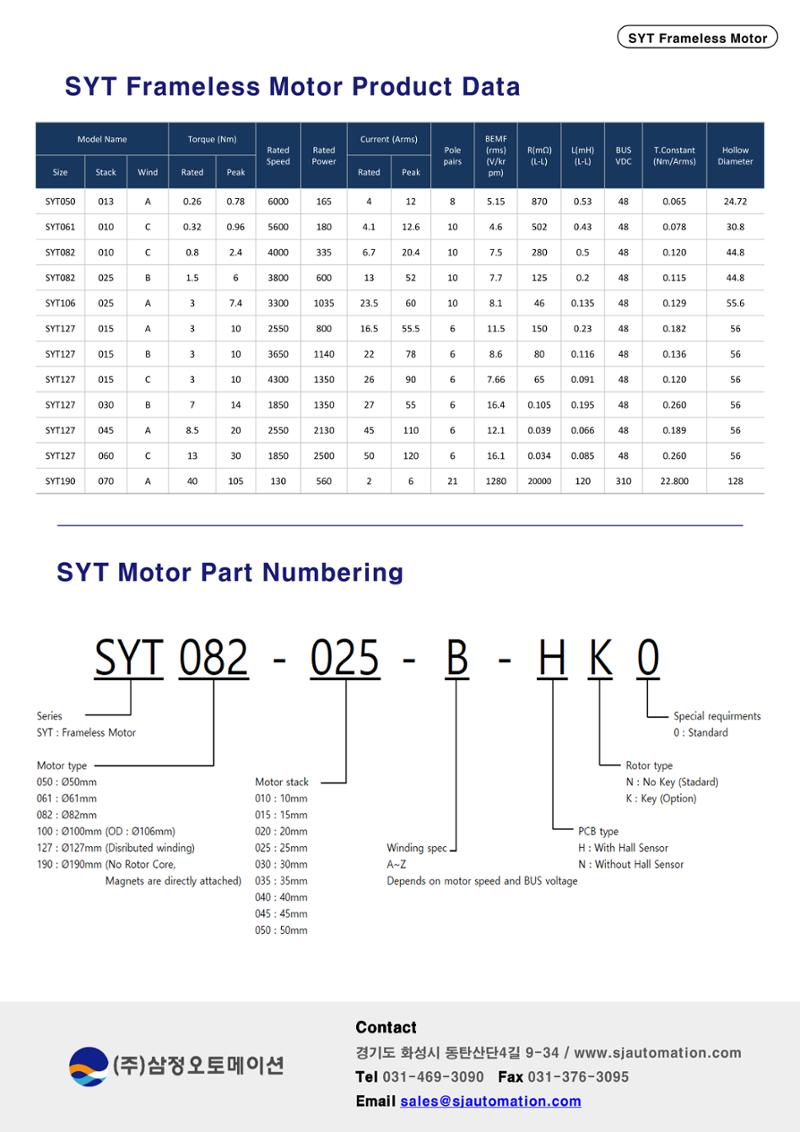

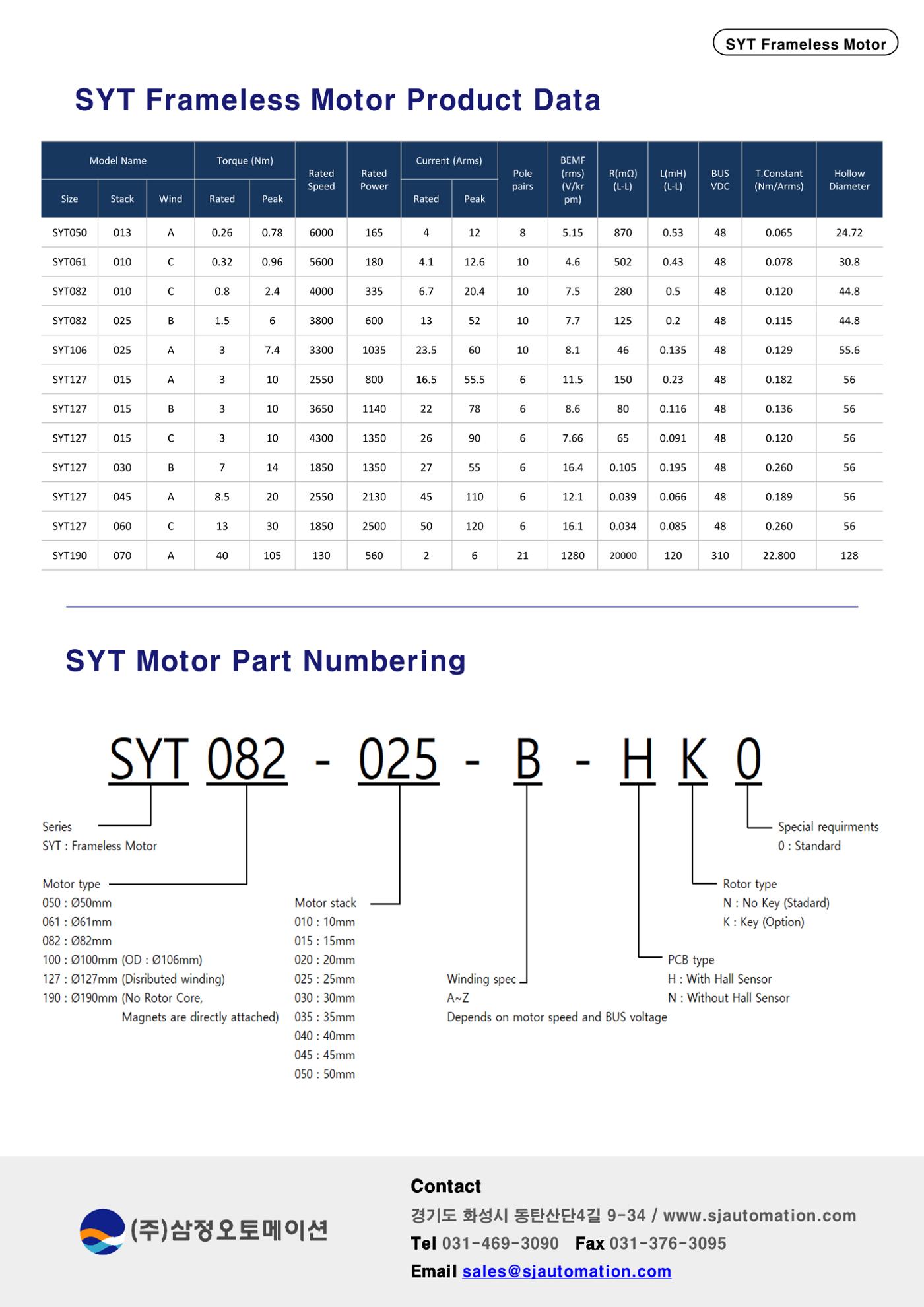

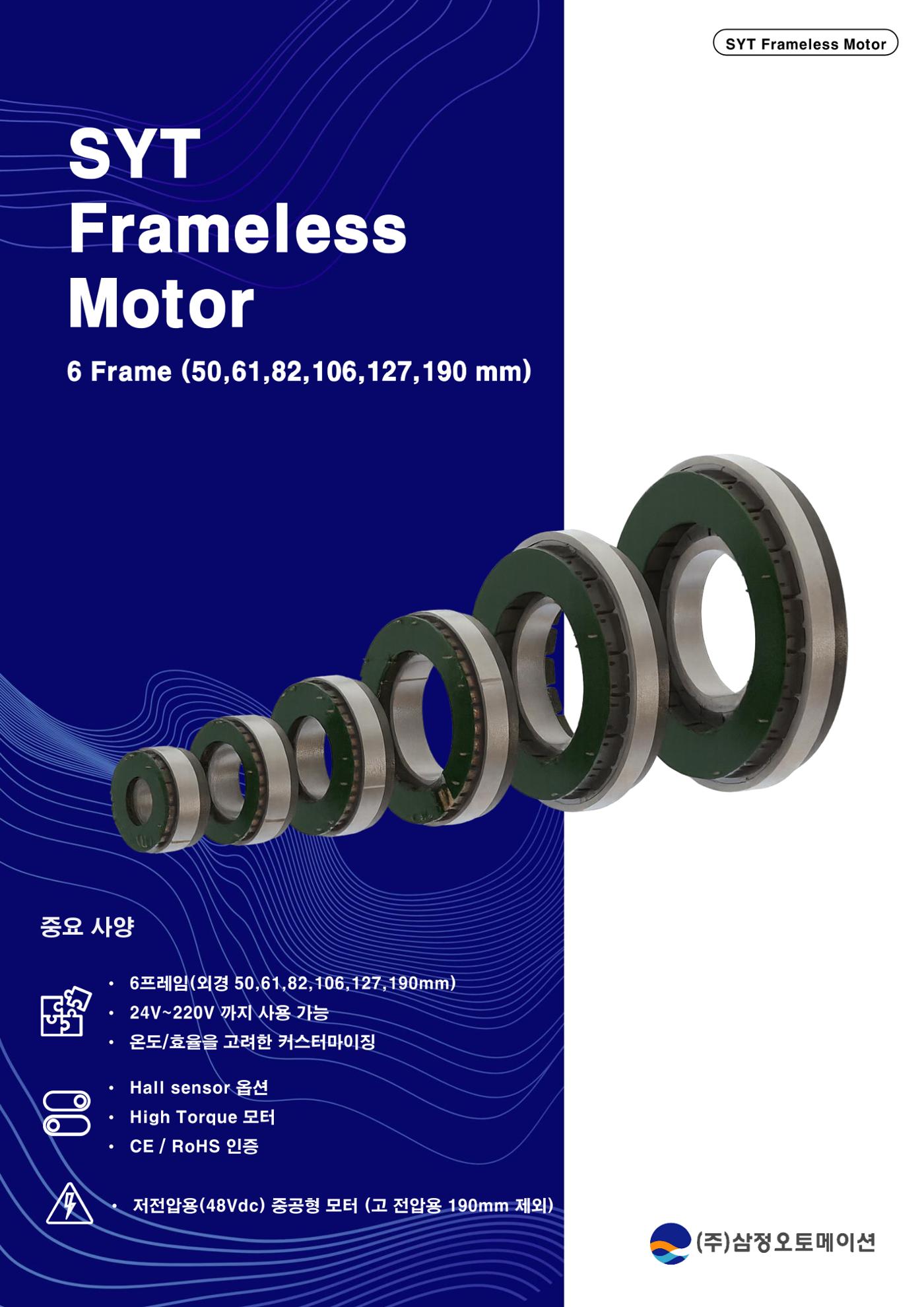

SYT Frameless Motor SYT Frameless Motor 6 Frame (50,61,82,106,127,190 mm) 중요사양 • 6프레임(외경50,61,82,106,127,190mm) • 24V~220V 까지사용가능 • 온도/효율을고려한커스터마이징 • Hall sensor 옵션 • High Torque 모터 • CE / RoHS 인증 • 저전압용(48Vdc) 중공형모터(고전압용190mm 제외) Contact 경기도화성시동탄산단4길9-34 / www.sjautomation.com Tel 031-469-3090 Fax 031-376-3095 Email sales@sjautomation.com SYT Frameless Motor Product Data SYT Motor Part Numbering Model Name Torque (Nm) Rated Speed Rated Power Current (Arms) Pole pairs BEMF (rms) (V/kr pm) R(mΩ) (L-L) L(mH) (L-L) BUS VDC T.Constant (Nm/Arms) Hollow Diameter Size Stack Wind Rated Peak Rated Peak SYT050 013 A 0.26 0.78 6000 165 4 12 8 5.15 870 0.53 48 0.065 24.72 SYT061 010 C 0.32 0.96 5600 180 4.1 12.6 10 4.6 502 0.43 48 0.078 30.8 SYT082 010 C 0.8 2.4 4000 335 6.7 20.4 10 7.5 280 0.5 48 0.120 44.8 SYT082 025 B 1.5 6 3800 600 13 52 10 7.7 125 0.2 48 0.115 44.8 SYT106 025 A 3 7.4 3300 1035 23.5 60 10 8.1 46 0.135 48 0.129 55.6 SYT127 015 A 3 10 2550 800 16.5 55.5 6 11.5 150 0.23 48 0.182 56 SYT127 015 B 3 10 3650 1140 22 78 6 8.6 80 0.116 48 0.136 56 SYT127 015 C 3 10 4300 1350 26 90 6 7.66 65 0.091 48 0.120 56 SYT127 030 B 7 14 1850 1350 27 55 6 16.4 0.105 0.195 48 0.260 56 SYT127 045 A 8.5 20 2550 2130 45 110 6 12.1 0.039 0.066 48 0.189 56 SYT127 060 C 13 30 1850 2500 50 120 6 16.1 0.034 0.085 48 0.260 56 SYT190 070 A 40 105 130 560 2 6 21 1280 20000 120 310 22.800 128 SYT Frameless Motor SYT Frameless Motor Dimension ▪SYT050 ▪SYT061 ▪SYT082 ▪SYT106 ▪SYT127 ▪SYT190 Contact 경기도화성시동탄산단4길9-34 / www.sjautomation.com Tel 031-469-3090 Fax 031-376-3095 Email sales@sjautomation.com SYT Frameless Motor
